Semi Automatic Dry Mortar Plant

Semi automatic level ready pre mixed cement mortar plant for dry mixing cement sand based building materials production

Describe:
Semi automatic level cement mortar plant is a full sets organized processsing equipments which used for producing cement sand based building materials dry mixing and packing.

We are here to help:Easy ways to get the answers you need.

Product Detail

Semi automatic level ready pre mixed cement mortar plant for dry mixing cement sand based building materials production


Keywords:

dry mortar mixer, concrete mix machine,mortar mix machine,ready mix cement dry mortar mixer machine,cement mix sand mixer machine,dry mortar mix production line,dry mix mortar production line,

General introductions:

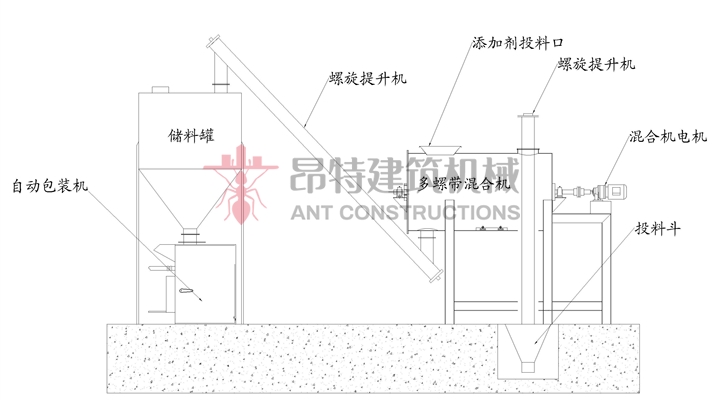

Ready pre mixed cement mortar plant is a full sets organized processsing equipments which used for producing cement sand based building materials dry mixing and packing, can be designed in very different structure, different automatic level.  Semi automatic level ready pre mixed cement mortar plant is one of the important classic configuration solution among of these different dry mix mortar plants. The most obvious feature of semi automatic level ready pre mixed cement mortar plant is that the main ingredients are manually metered and fed, this type working mode is specially suitable for main raw materials are come in certain weight bag, materials lifting equipment can be screw conveyor or bucket elevator, materials mixing and packing are the same with other configuration modes, both are automatically. See below two classic configuration drawing for better understanding of semi automatic dry mix plant:

simple line drawing (1).jpg



Main parameters:

Mixer typeMaterials liftingMaterials coming modeMixing cyclePackingOutput capacityMixer volume
Multi RibbonScrew conveyor or bucket elevator20-25kg bags or ton bag5-10 minitesValve, open mouth bag, 10-50kg adjustable1-10t/h1-7m3
Twin shafts non gravityScrew conveyor or bucket elevator20-25kg bags or ton bag2-3 minutesValve, open mouth bag, 10-50kg adjustable3-20t/h2-10m3
Coulter paddleScrew conveyor or bucket elevator20-25kg bags or ton bag1-5minutesValve, open mouth bag, 10-50kg adjustable3-20t/h1-5m3


Henan Ant Constructions as one professional supplier of dry mortar plant, formula technology and additives for dry mortar and putty powder in china, not only provide customer equipment, but also provide additives, formula technology, and problem consultation during application of mortar and putty powder during construction. We provide wide range different output capacity, different automatic level and different cost soltution dry mix plant, contact us to get the best solution for your dry mortar mix plant, free solution design, free consulation, free formula technology if you choose our equipment, contact for more valuable information please...
