Ready mixed dry pack lime mortar mix production plant
Main components and functions of Ready mixed dry pack lime mortar mix production plant
Material in-charge hopper: for charging material to bucket elevator.
Bucket elevator: Lifting materials to pre-mix silo.
Double shaft non-gravity mixer: uniform mixing of materials, special paddle sets suitable for fiber mixing. Big double door could accelerate material discharge uniformly, paddle sets are optional according different type material.
Finished product silo: for storing finished material and secondary mixing of pre-packing material. Finished product silo is available for connecting automatic metering packer and manual discharging valve
Automatic metering packer: packing finished product by automatic weighing, high accuracy.
Pulse dust catcher: absorb the dust during production process, mainly used for de-dust from material in-charge hopper and packer.
Control cabinet: includes instrumentation and PLC control for controlling electrical switch of the whole production lines.
Compressor: Produce compressed air for the whole air compressing system
There are varies Application of Ready mixed dry pack lime mortar mix production plant in our life
Parameters of Ready mixed dry pack lime mortar mix production plant
| Production line mode | Output | Occupied area | Equipment height | Remark of batching and packing |
| Simple | 1-15t/h | 40m2 | 4-6m | Manual batching and automatic packing |
| Basic | 5-15t/h | 40-100m2
| 6-9m | Manual batching, automatic packing |
| Semiautomatic of serial mode | 5-15t/h | 100-200m2 | 10-13m | Automatic batching of coarse material, manual batching of additive, automatic packing |
| Semiautomatic of tower mode | 10-50t/h | 200-500m2 | 15-25m | the same to serial semiautomatic mode |
| Fully automatic of tower mode | 30-100t/h | 300-500m2 | 20-30m | Automatic batching of all raw material and packing |

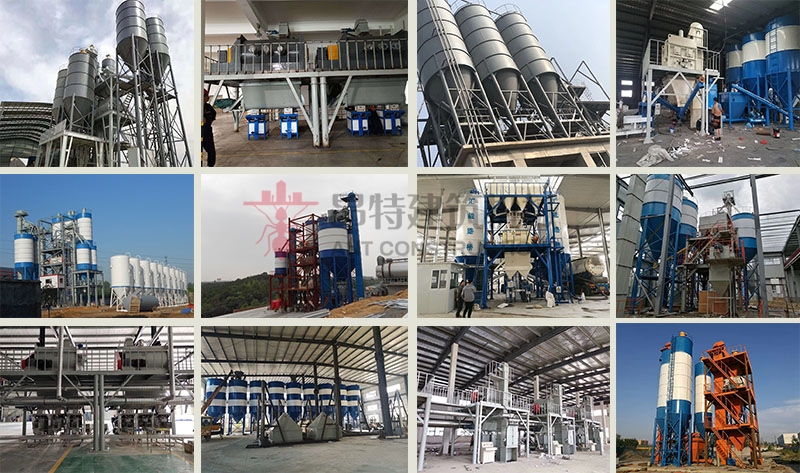

Different capacity Ready mixed dry pack lime mortar mix production plant build in different areas
The demand of dry mortar mix plant is more and more in South East Asia, Middle Asia, Middle East Area, Africa, South America. With the development of local society, people have more and more demands for various dry mortar products, wall putty powder, gypsum powder, and architectural coatings.
Choose a good factory for your dry pack mortar mix plant
It is necessary to choose a reliable and professional supplier to build a stable production Ready mixed dry pack lime mortar mix plant, with decades of developing, the dry mortar mixer machine production technology is mature and advanced in China because there builded thousands of big and small dry mortar mix plant in China and also worldwide.
Ant Construction Machinery has designed and delivered larger dry mix plant for various bulk materials since the 1990s. The users of the dry mix plant we have supplied include the building materials, chemicals, metal processing, food and forestry industries. Long experience and in-depth understanding of the behavior and handling of dry powder materials allow optimal equipment choices and the most appropriate process implementation. This results in the most efficient investment for the customer and ensures a high quality and efficient production process.
