Anually 200000 tons full automatic dry mortar production line
1. General introductions of automatic dry mortar production line
Anual output 200000 tons full automatic dry mortar production line is mainly composed of lifting conveying system, metering batching system, mixing system, storage system, packaging system, dust removal system, control system, steel platform, etc. Each system has it's special function in processing different stage materials. 200000 tons full automatic dry mortar production line is a set of machinery that produces dry mortar with high output capacity (also known as dry premixed mortar or hydraulicity cement mortar) for construction industry and other uses. According to the structure, the dry mortar production line can be classified as four different types: Tower type, Stair type, Block type and Flat type. According to the operating mode, the dry mortar production line can be classified as manual type, auto-manual type, auto type.The dry mortar production line can be adopted in production processes of regular dry masonry mortar, plastering mortar, thermal mortar, anti-crack mortar, self-leveling mortar and Decorative mortar etc. It belongs a kind of custom make equipment base on customer's output capacity and product features which will be produced by this set dry mortar production line, the cost and configuration can be very different base on different capacity, different raw materials situation and end products features. Here below is the general introductions of a Stair type dry full automatic dry mortar production line...
2. Working flow 3D drawing design for a good dry mortar mixing production line
Lifting and conveying system of Anual output 200000 tons full automatic dry mortar production line: Bucket elevator and screw conveyor are commanly lifting and conveying equipment for Anual output 200000 tons full automatic dry mortar production line, which are generally configured according to production capacity and equipment models.
Mixing system of Anual output 200000 tons full automatic dry mortar production line: It can be equipped with dual-shaft zero-gravity paddle mixers or coulter mixers. It has the advantages of fast mixing speed and high mixing accuracy. The mixer machine can mix ratio of 1:10,00 or even higher level. Under the reasonable speed of the stirring blade, materials with large specific gravity and particle size differences such as polystyrene particles, cementing materials and chemical additives are in a state of instantaneous weight loss, forming all-round convection, diffusion and mutual shear in the mixing drum , to achieve the effect of uniform mixing quickly and gently, without segregation and damage to the original state of the material, ensuring that the insulation coefficient of the mortar will not be reduced due to the shape of the insulation material, ensuring the insulation effect of the product.

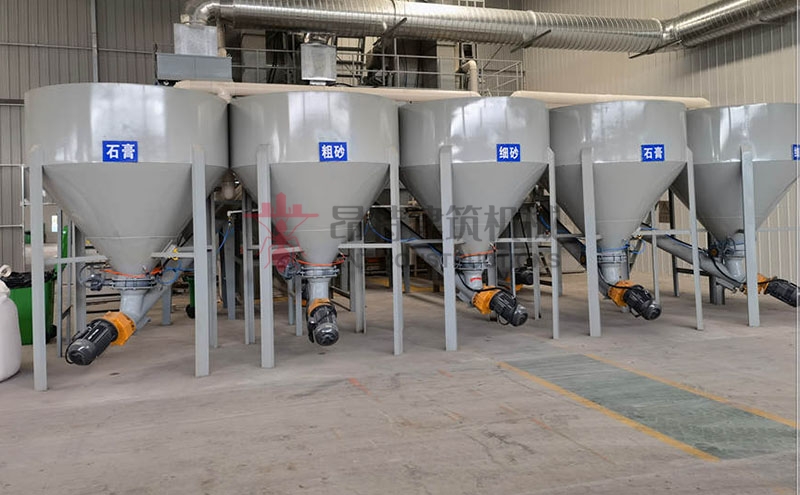

Storage system of Anual output 200000 tons full automatic dry mortar production line: divided into large storage tanks (30, 40, 50, 60, 80, 100, 200 tons, etc.) and small storage bins.
Packaging system of Anual output 200000 tons full automatic dry mortar production line: Generally, valve bag packaging machine is used, and polymer mortar is open bag packaging machine, which greatly improves production efficiency, saves labor, reduces labor intensity of workers, reduces production costs, and packaging accuracy is 99.5%
Dust removal system of of Anual output 200000 tons full automatic dry mortar production line: adopts pulse bag type, which has good dust removal effect and ensures that dust pollution is lowered when the equipment is working. At the same time, it can be equipped with a wet sand drying system and a screening system according to customer needs.
Control system of of Anual output 200000 tons full automatic dry mortar production line: Intelligent automatic control or manual control can be used, with functions such as over-tolerance processing, automatic drop correction, fault diagnosis, and alarms. The use of computer control improves the reliability and safety of the control system and greatly facilitates the use of users.
Steel frame platform of of Anual output 200000 tons full automatic dry mortar production line: It is made of high-quality thick steel pipe, channel steel, square pipe, steel plate, round pipe and other materials. It is permanent and stable with strong bearing capacity, ensuring the safety of the entire equipment.
What is dry mortar mixing production line main applications
ordinary masonry mortar, thin bed mortar for concrete blocks, thermal insulation masonry mortar, etc.
