Dry pack wall putty powder mixing production line
Patent design and advantages-Dry pack wall putty powder mixing production line

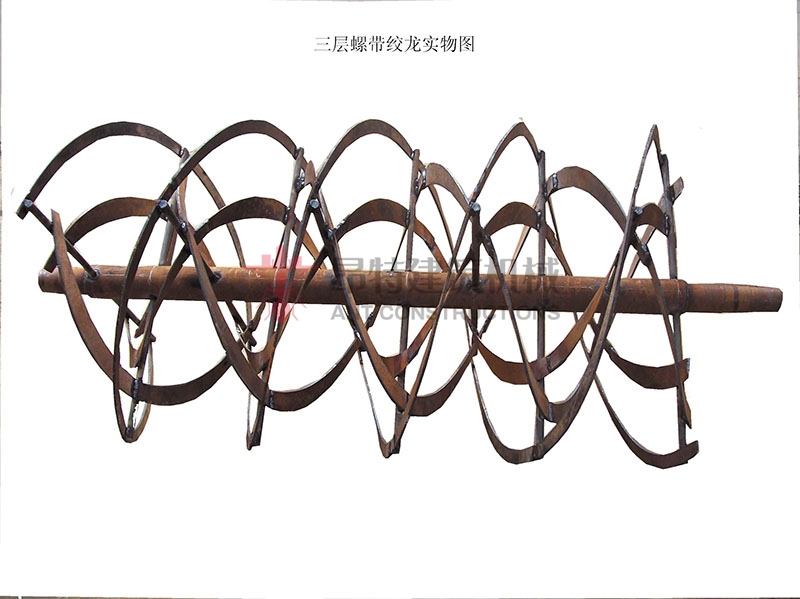

Dry pack wall putty powder mixing production line is popularly used ANT horizontal ribbon mixer, the stirring shaft working in hight-speed rotation, it makes internal and external multi-ribbons stir the material in drum sufficiently , internal sprial ribbon makes material move from inward to outsides, the outer spiral ribbon makes material move from outside to inward side, this is cycled repeat for the material, meanwhile , partly materials along stir shaft moving, the whole mixing process is a convective mixing. Therefore, this mixing process can mix the material evenly and sufficiently in a short time.
ANT multi ribbon powder mixer is improved from U-shaped structure with many tests. Utilization efficiency higher 30% than U-shaped structure.
Ribbon mixer with many advantages: Stable running, uniform mixing, little residual , easy clearing ; higher output, no splash, little dust, low noise, easy operation, easy maintenance.
Applications-Dry pack wall putty powder mixing production line
dry mortar, insulation mortar, putty powder mixing.
Parameters-Dry pack wall putty powder mixing production line
Item | Spec | Origin |
Material | A3 | Handan |
Mixing drum | 5mm thickness | Handan |
Lining board | 8mm thickness | Handan |
Ribbons | 1st layer: 8mm, 2ed layer: 6mm, 3rd layer: 4mm | Handan |
Reducer | 8# | Changzhou |
Motor | 11KW | Zhengzhou |
Supports | 8# steel | Handan |
Main parts of Dry pack wall putty powder mixing production line/ lime based wall putty powder dry mixer machine
1. Main material feeding open
2. Admixture feeding open
3. Inside view open
4. Exhaust vent
5. Seal flange
6. Bearing
7. Manual valve
8. Material discharge open
9. Cleaning area
10. Oil adding hole
11. Reducer
12. Rotating motor.
Turnkey solution manufacturer-Dry pack wall putty powder mixing production line
Henan Ant Constructions is providing dry mortar production line, wall putty&mortars, admixtures&additives for wall putty and mortars, high quality formulas for wall putty and mortar.
Henan Ant Constructions as one professional supplier of dry mortar plant, formula technology and additives for dry mortar and putty powder in china, not only provide customer equipment, but also provide additives, formula technology, and problem consultation during application of mortar and putty powder during construction.
Henan Ant Constructions is one of the earliest producer of kinds of dry mortar and wall putty powder in China. Therefore, it gone through the whole history of mortar and wall putty application in China and summerized rich experiences in improving mortar and putty powder formula and solutions for kinds of problems during application, such as cracking, falling off after drying, adhesive strength, thermal insulation, water retention, etc.
Henan Ant Constructions design suitable formula according to your local materials feature and also provide kinds of suitable chemical additives, cooperated lab for making different testing of additives and finished mortar is available too.
In addition to choosing reliable quality machinery and equipment, it is also necessary to consider the professional capabilities of the supplier, the ability to design solutions based on the real needs of customers, whether it can provide low-cost and high-quality mass production formulas, and the application of finished products in the future Solutions to problems that arise, etc.
