Dry Mix Skim Coat Waterproof Wall Care Putty Production Line
Main production configuration-Dry Mix Skim Coat Waterproof Wall Care Putty Production Line
Simple small putty powder production line is simplifed reasonable configuration with stable runing, easy operation and maintanence, high output capacity and low noise, it is perfect choice for middle and small producer of wall primer skim coat putty
Full Automatic Dry putty powder mix plant includes Mixing machine, Storing and conveying system of raw materialsMeasuring system of raw materials, Packing system, Dedusting system, Electrical system, etc
Both different automatic level Dry Mix Skim Coat Waterproof Wall Care Putty Mixing Production Line can produce ordinary premixed dry putty powder or dry putty powder with special function for interiro and exterior wall, meanwhile, the end product uniformity is no difference for both type different production line.
Main Parameters for different Dry Mix Skim Coat Waterproof Wall Care Putty Mixing Production Line from China Factory
Model | Mixer volume | Capacity | Total power | Occupation area | Height | Worker required |
Workshop Type Wall Putty Production Line |
ACM 2000 | 2m3(ribbon) | 1-5t/h | 5.5-11kw | 20m² | 3.2m | ≥3 |
ACM2000 | 2m3 | 5-8t/h | 24-28kw | 30m² | 6m | ≥3 |
HTTL2000 | 2m3 | 10-15t/h | 60-80kw | 50-60m² | 9m | ≥4 |
HTTL3000 | 3m3 | 15-25t/h | 80-110kw | 60-80m² | 9.5m | ≥4 |
HTTL4000 | 4m3 | 25-35t/h | 100-150kw | 80-100m² | 10m | ≥4 |
Tower Type Wall Putty Production Line |
HTTL4000 | 4m3 | 35-45t/h | 140-170kw | 120-180m² | 25m | ≥4 |
HTTL6000 | 6m3 | 35-75t/h | 150-180kw | ≥300m² | 35m | ≥4 |
HTTL10000 | 10m3 | 80-120t/h | 160-200kw | ≥300m² | 35m | ≥4 |

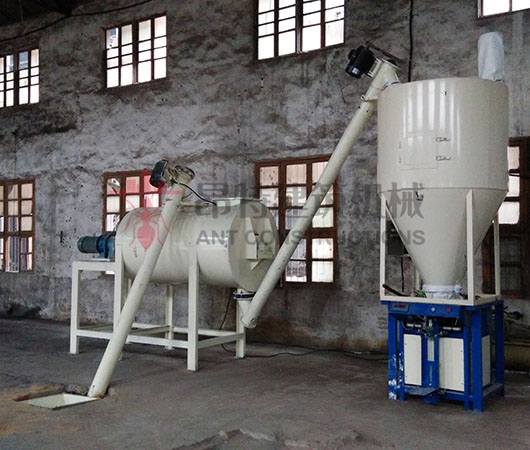

Features of Dry Mix Skim Coat Waterproof Wall Care Putty Mixing Production Line from China Factory
1. Low investment for individuals,
2. Simple operation,
3. 2-3people can operate,
4. Low maintenance,
5. Cover small area,
6. height is less than 3meter,ordinary houses can plant,
7. 1 ton-2 ton per batch, 1-5 ton/h.
Application ranges of Dry Mix Skim Coat Waterproof Wall Care Putty Mixing Production Line

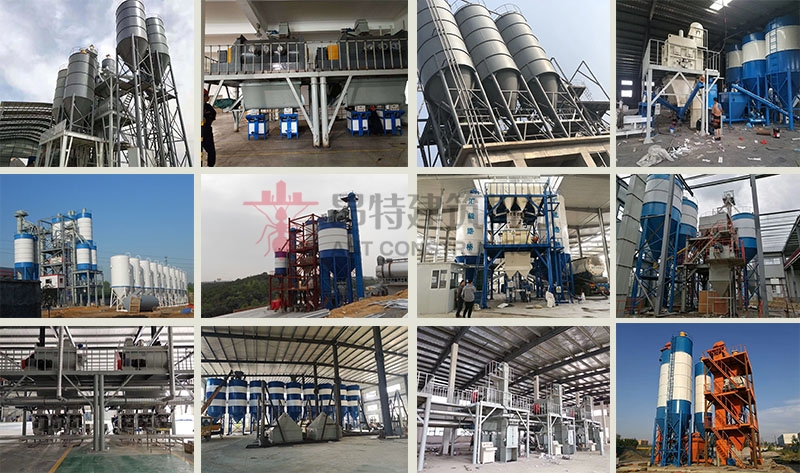

China Factory of Dry Mix Skim Coat Waterproof Wall Care Putty Mixing Production Line
There are too many Dry Mix Skim Coat Waterproof Wall Care Putty Mixing Production Line factories in China, the most important is choose a suitable one for you.Before choose a suitable ry Mix Skim Coat Waterproof Wall Care Putty Mixing Production Line and a reliable factory, you should consider below points:
1. Firstly, you should have an idea how many ton end product do you need to produce, output capacity is very important and this largely determines the scale and cost of the production line
2. What packing mode will you choose, choose a suitable packing mode as you want from 20-50kg valve or open mouth bag, ton bag, , etc.
3. If possible,provide your working shop layout to your supplier for designing the solution as your actual situaiton.
4. All other details need to be attention, tell your consulator in advance.
