Ultra fine calcite stone powder 3 roller grinding raymond mills
Main parameters-Ultra fine calcite stone powder 3 roller grinding raymond mills
| Items | ANT110 | ANT110Z | ANT138Z | ANT175G | ANT215G |
| Max feeding size（mm） | <30 | <30 | <35 | <40 | <50 |
| End product size（mm） | 1.6-0.045, | 1.6-0.045, | 1.6-0.045, | 1.6-0.045, | 1.6-0.045, |
| min 0.038 | min 0.038 | min 0.038 | min 0.038 | min 0.038 |
| Output（t/h） | 3-9t | 3-10t | 6-17t | 9.5-25t | 15-45t |
| Main motor（kw） | 55 | 55 | 90 | 160 | 280 |
| Fan motor power（kw） | 55 | 55 | 110 | 200 | 315 |
| Cclassifier Motor（kw） | 7.5 | 11 | 18.5 | 22 | 55 |
Electromagnetic vibration
feeder power（kw） | 0.15 | 0.15 | 0.2 | 0.45 | 0.65 |
Advantages feature-Ultra fine calcite stone powder 3 roller grinding raymond mills
Short grinding time, low iron content, and higher quality of finished product

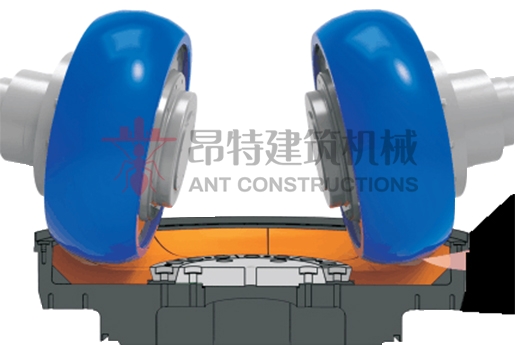

The materials will stay in the mill for a short time, which can reduce repeated grinding and is easy to detect and control the grain size and chemical component of the product, and is convenient for stabilizing the product quality; in addition, the grinding roller and millstone will not contact directly. The iron content in the product is very low, and the iron generated due to mechanical wear is easy to be removed, thus effectively guaranteeing the whiteness and purity of the material.
High environmental protection standards, more automatic
The equipment operation is stable and of small vibration, so that the noise is small. The system is sealed in an integral manner and is working under negative pressure, so that there is no dust spilling and the environment can keep clean with the emission standard far better than the international standard. It is also equipped with expert-level automatic control system, which can realize free switch between remote control and local control; the operations are simple and labor-saving.
Main applications-Ultra fine calcite stone powder 3 roller grinding raymond mills
Raymond mill is widely used for grinding non-flammable and non-explosive materials whose Moh’s hardness is below 9.3 and humidity less than 6% such as barite, calcite, potassium feldspar, talc, marble, limestone, dolomite, fluorite and lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass and thermal insulation material in mine, metallurgy, chemistry and building industry.
General introductions-Ultra fine calcite stone powder 3 roller grinding raymond mills
The Raymond Roller Mill is an air-swept vertical ring-roll mill with an integral classification system that simultaneously dries, pulverizes and classifies a number of different types of products including limestone, clay, minerals and others. We have 3 roller Raymond mill, 4 roller Raymond mill, 5 roller Raymond mill and 6 roller Raymond mill for choice.
Raymond mill is a common grinding machine to grind barite, calcite, potash feldspar, talcum, marble, limestone and slag etc. which materials below scale 9.3 of moth's hardness and 6% humidity non flammable and non-explosive stuff. Include 280 odds of raw material from mining, building material, chemical engineering and metallurgy for power generation and processing. The product size is adjustable on required in the range of 40-400 meshes. some of the materials up to 2500 mesh.
