Basic configurations of dry mortar plant or production line
Application scope of dry mortar plant or bonding mortar dry mix production line (basic configuration):
Used in the production of ordinary dry mortar (dry-mixed mortar), waterproof mortar, adhesive bonding mortar, anti-cracking mortar, polystyrene particle thermal insulation mortar, hollow vitrified microbead thermal insulation perlite mortar, etc.
Working principle of dry mortar plant or bonding mortar dry mix production line (basic configuration):
The basic dry mortar production line configuration is used for raw material storage, sand drying, materials batching and weighing, material mixing and stirring, finished product packaging, as well as raw material transportation, lifting and dust collecting in the dry mortar production process.
Introduction of dry mortar plant or bonding mortar dry mix production line (basic configuration)
The comeplete production line of China dry mortar plant is mainly composed of the following complete set dry mortar equipment:

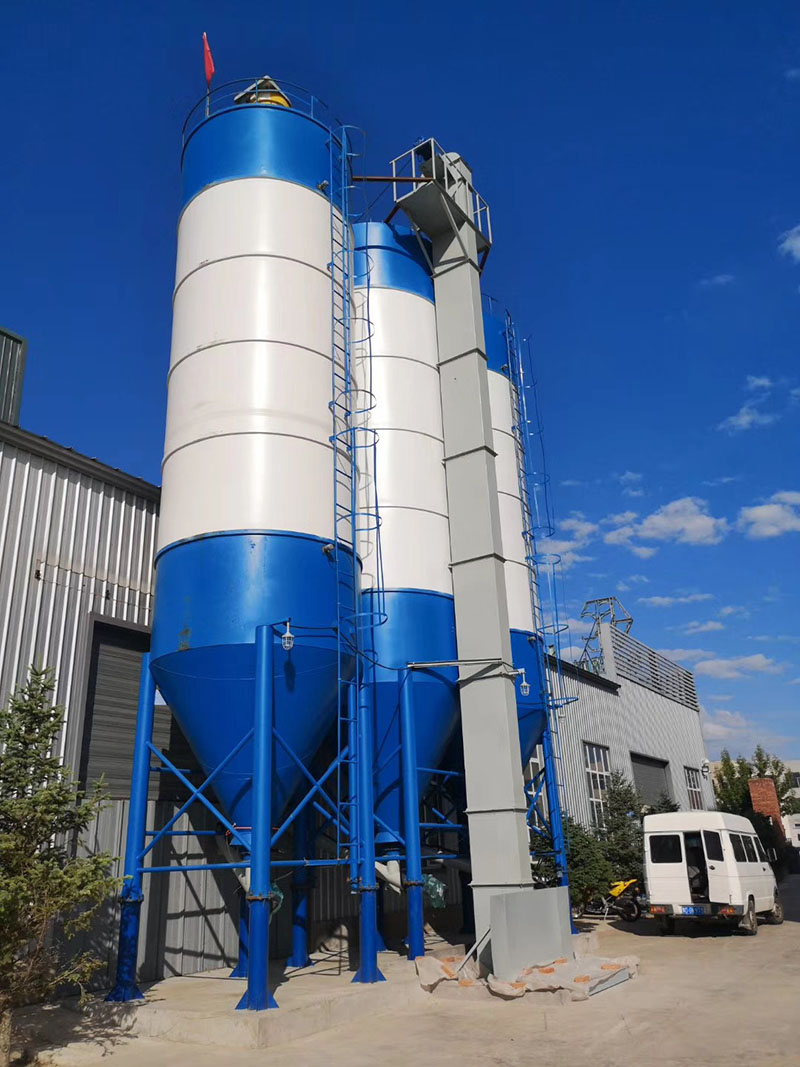

1. Major raw material storage silo-Basic configurations of dry mortar plant or production line:
The dry mortar plant silo is used to store bulk raw materials, such as cement, fly ash and sand. Generally, cement and fly ash are loaded by tanker trucks. Small few small qty materials sil are needed during project construction to store small quantities of raw materials, such as polymer powder and ther additives.
2. Sand dryer-Basic configurations of dry mortar plant or production line:
It is used for drying wet sand. The system includes hot air furnace, dryer machine, sand sieve, dust collector, cooling, conveying, lifting and other equipment. The sand dryer machine is used in a dry mortar production line system with a large output. For special application mortar manufacturers, the consuming of sand not too much. It is recommended to buy finished dry sand (it is convenient to purchase finished refined dry sand in some areas).

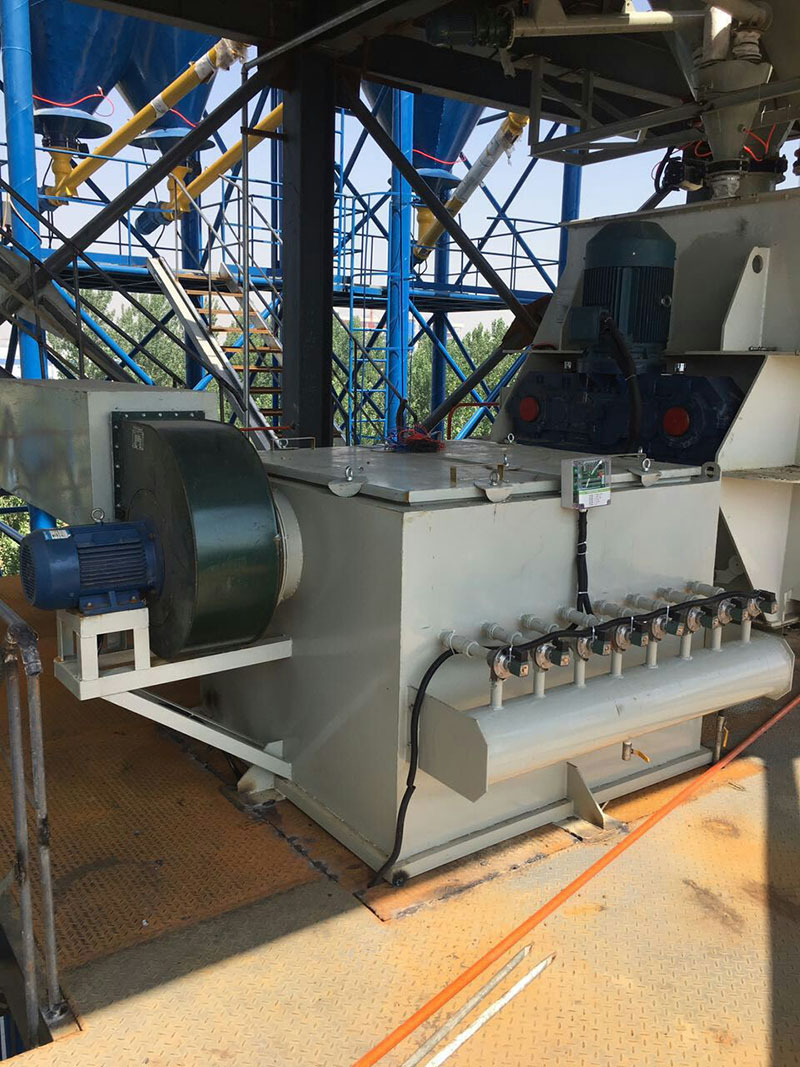

3. Batching system-Basic configurations of dry mortar plant or production line:
It consists of a weighing scale hopper, a feeding screw conveyor, a discharging device, a small qty material adding device and a control system. It can automatically measure different raw materials according to the formula, reduce labor intensity and environmental pollution, ensure the quality of dry mortar products.

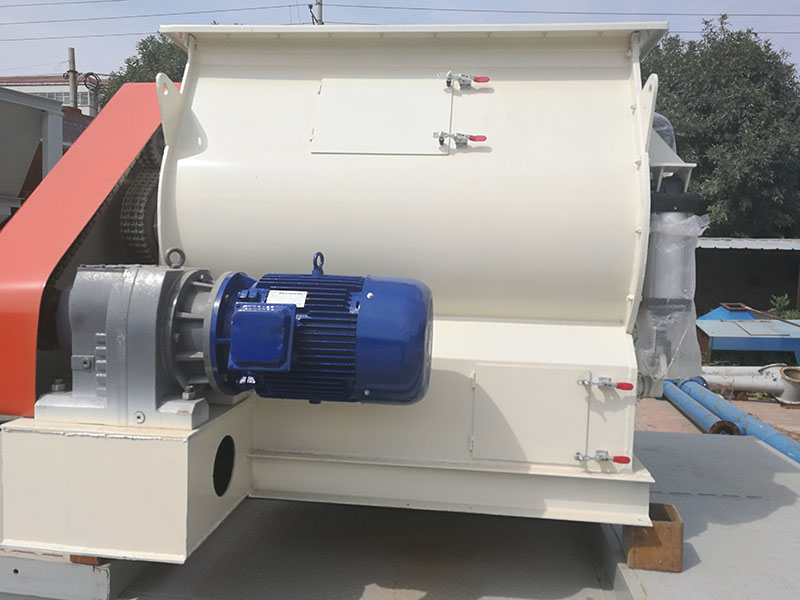

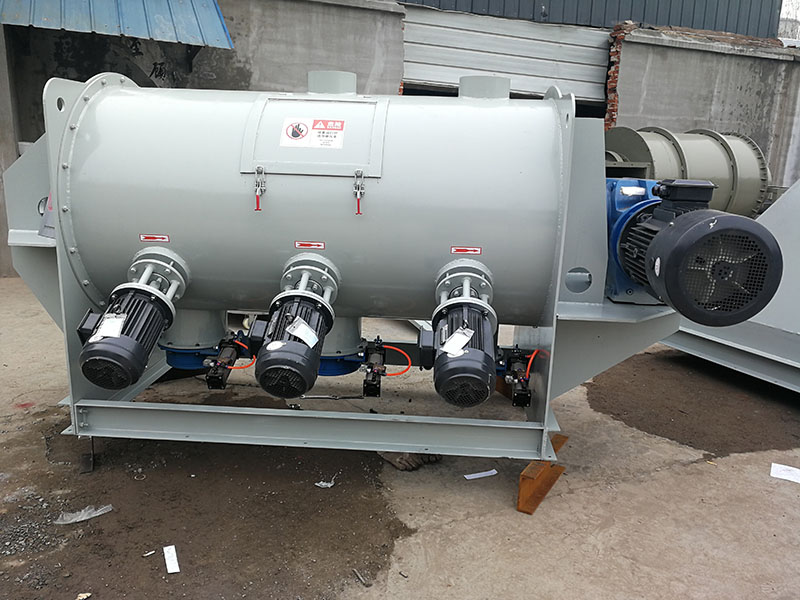

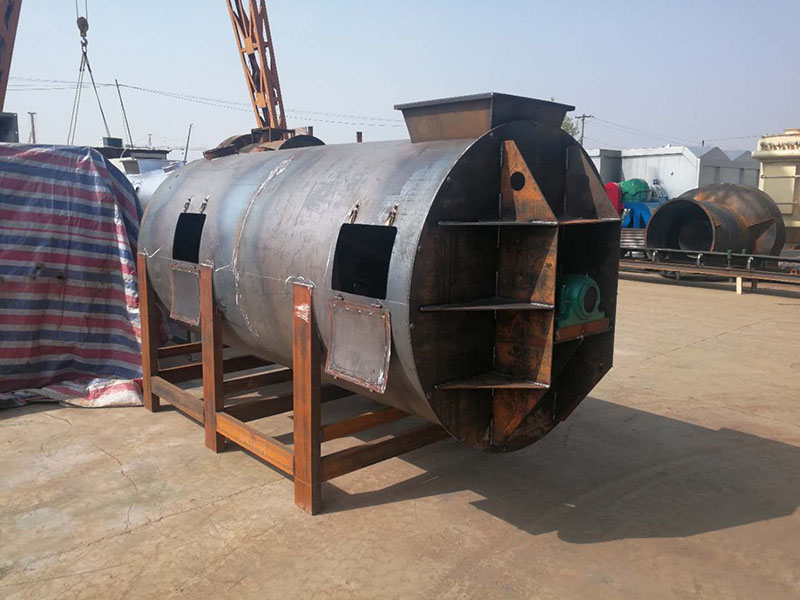

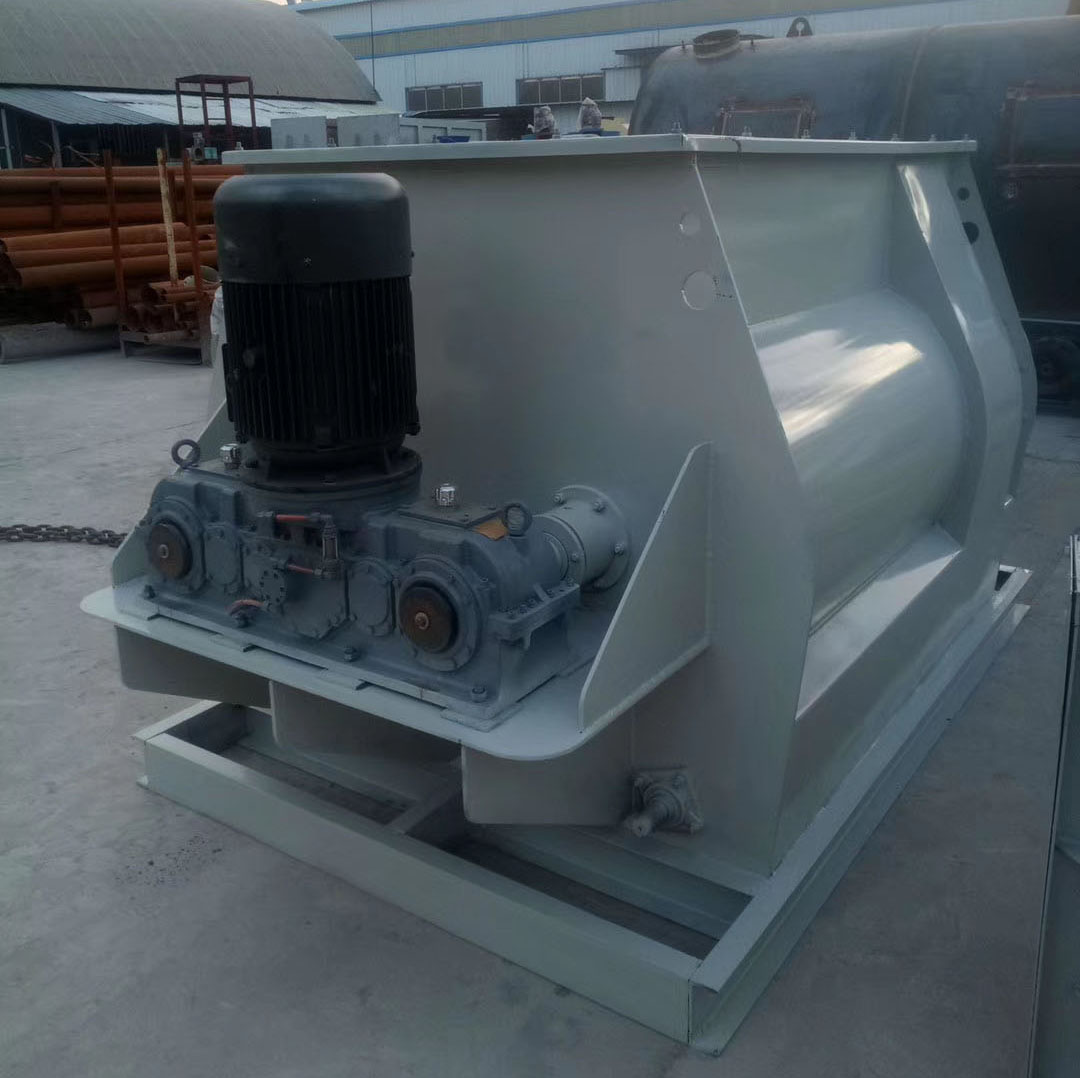

4. Mixer-Basic configurations of dry mortar plant or production line:
There are many options for mixers, such as double-screw cone mixer, coulter mixer, ribbon mixer, double-shaft blade non-gravity mixer, etc. The requirements for the dry powder mortar mixer are uniform mixing, no dead ends, high efficiency, wear-resistant , fast discharge speed. Above several types of mixers are widely used in dry mortar production lines as biaxial paddle non-gravity mixers and coulter mixers. Recommendation: Double shafts non gravity mixer suitable for dry powder mixing, and "flying knife" can also be added according to customer requirements. Coulter mixer is suitable for mixing with fiber materials and adding liquid.

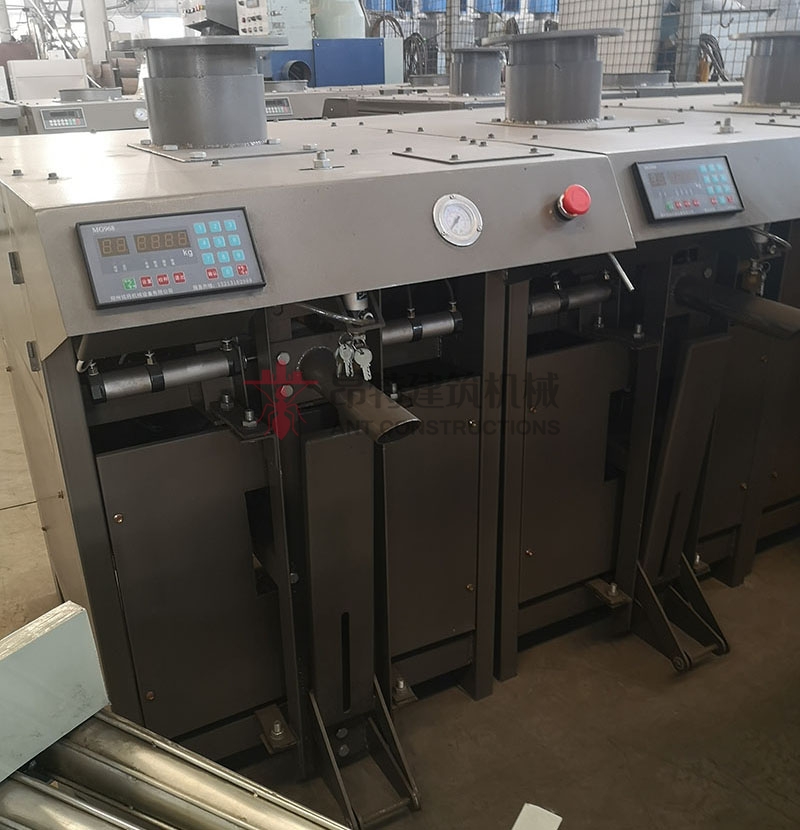

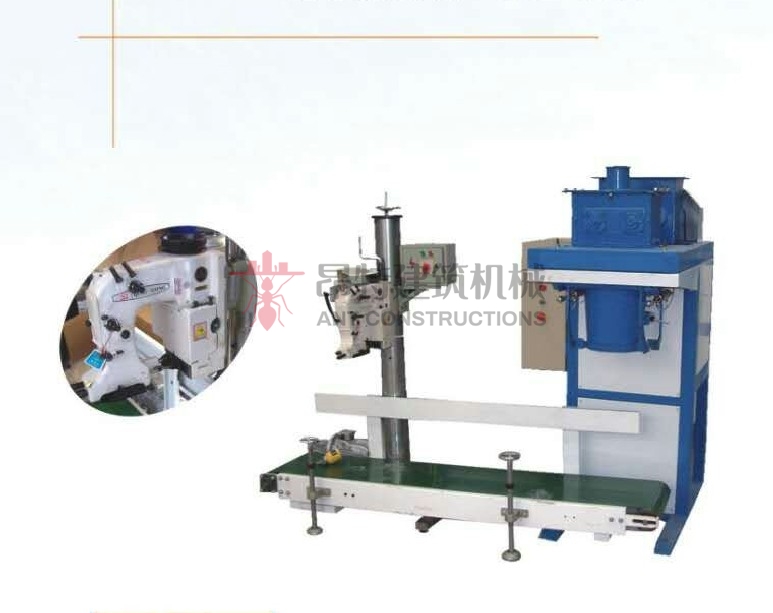

5. Dry powder packaging machine-Basic configurations of dry mortar plant or production line:
There are open bag and valve bag packing machine. Dry powder mortar is often use valve bag packaging machines, because valve bag packaging no need stiching and only needs to be operated by one person, but this dry powder packaging machine is not suitable for packaging light materials or big size materials. Open bag packaging scales can pack all kinds of materials, but bag need to be sewn after bagging. Compared with the valve bag packaging machine, this open mouth packaging machine needs one more operator.
6.Dust collector-Basic configurations of dry mortar plant or production line:
It is used to recover dust in the dry mortar production line, which is beneficial to environmental protection. It is generally located on the top of cement silo, at the feed opening of the hoist, etc. Recommended equipment: bag pulse dust collector
7.Conveying and lifting structure-Basic configurations of dry mortar plant or production line:
The material conveying methods used in the silo of the production line are: horizontal conveying and vertical conveying. Horizontal conveying can use screw conveyors. Vertical conveying generally uses bucket elevators or electric elevators.
As a proffessional manufacturer of dry mortar equipment, ANT CONSTRUCTION provides you with the following types of production lines:
Complete set of small simple dry mortar mix plant (annual output of 3000-10000 tons)
Medium-sized dry-mixed mortar production line (annual output of 10,000 tons-50,000 tons)
Large-scale full automatic dry mortar production line (over 100,000 tons per year)
