Reducer working principle in cement wall putty mixing machine

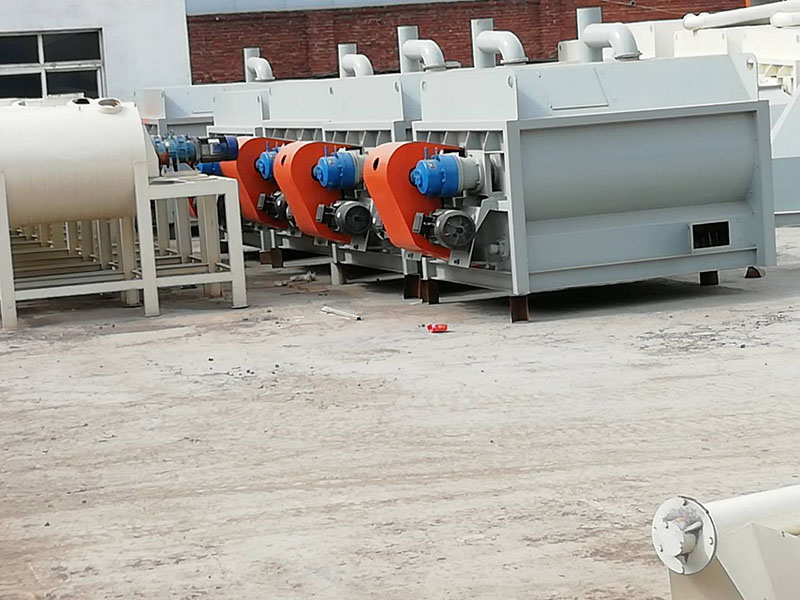

The reducer is one of the important part of the putty powder mixer. The quality of the reducer has a great influence on the quality of the putty powder mixer. Henan Ant Construction has always adhered to the principle of surviving by quality and only choose the right one for our mixer parts so as to ensure the quality of the mixer machine. In the white cement based wall putty mixing mixer machine, the special reducer selected by Henan Ant Construction is a planetary cycloid reducer. Although the price is high, it guarantees the quality and performance of the white cement based wall putty mixing mixer machine.
The working principle of the special reducer for white cement based wall putty mixing mixer machine

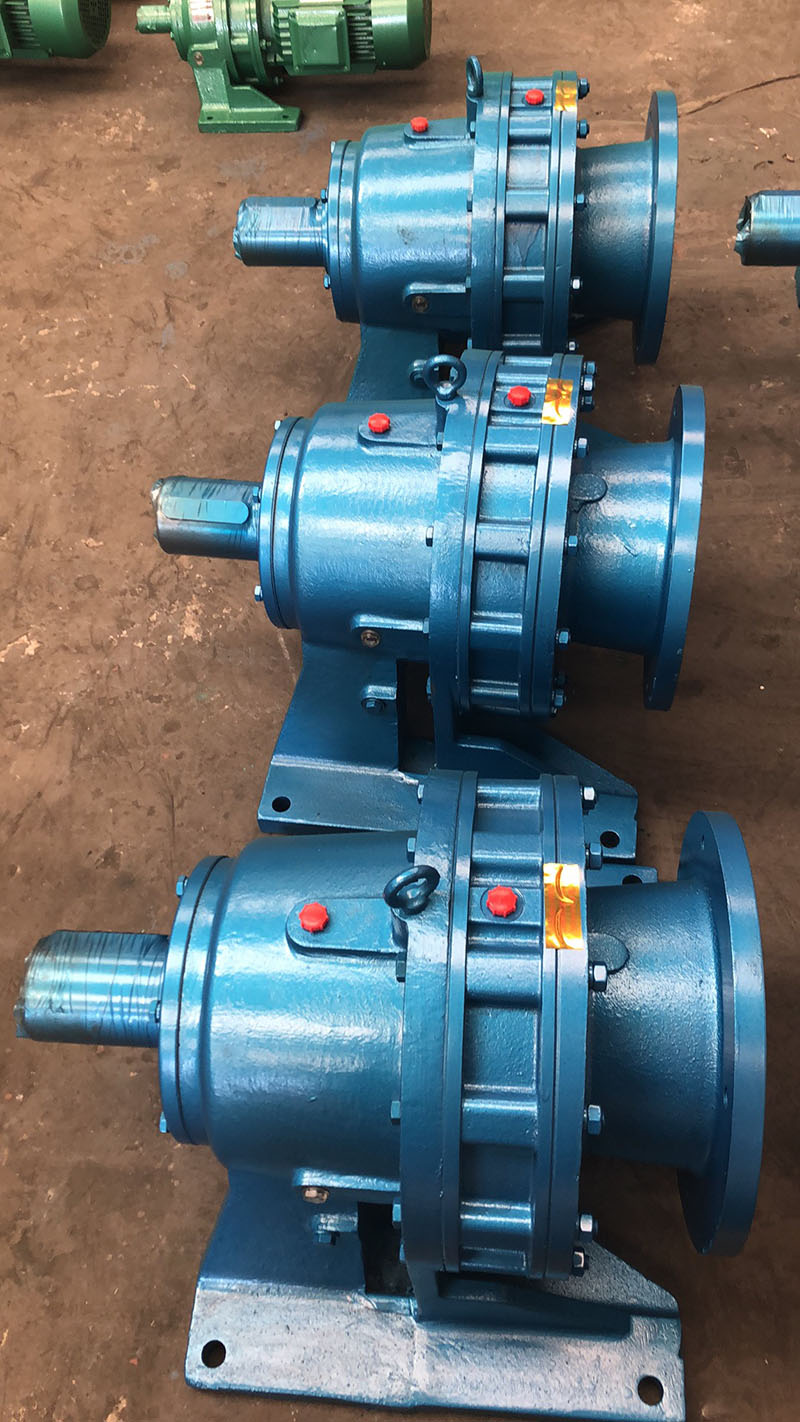

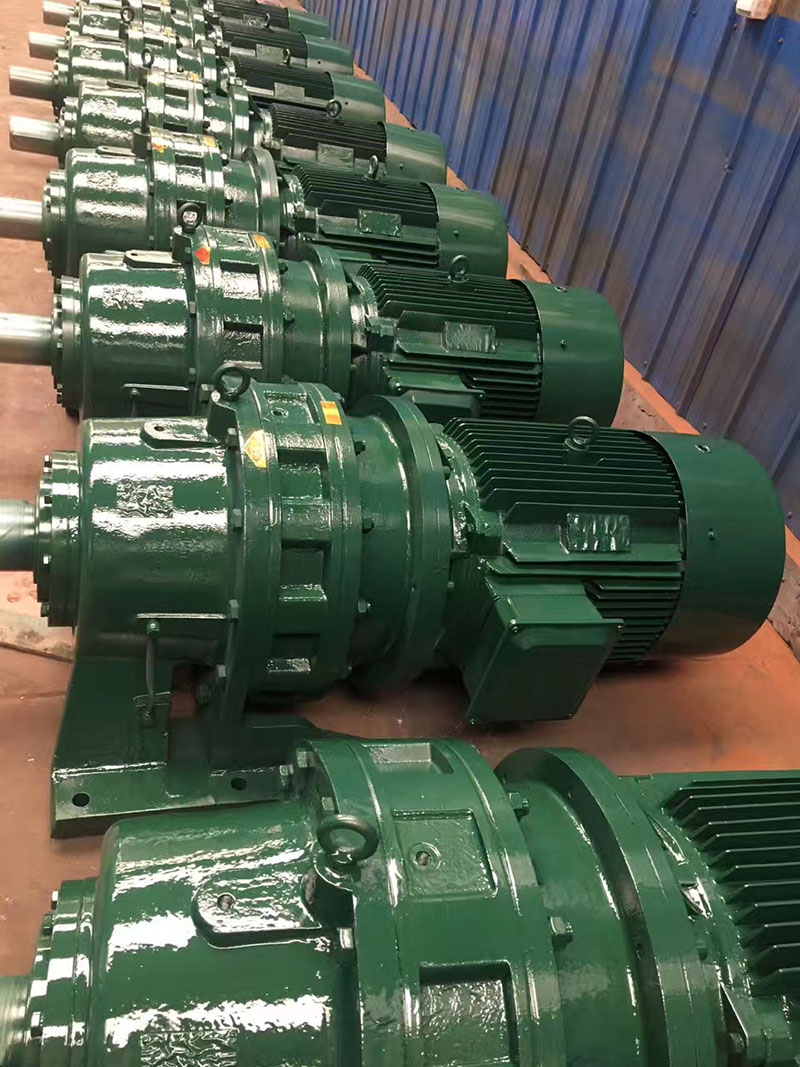

The entire transmission system of the planetary cycloid reducer for putty powder mixer can be divided into three parts: input part, deceleration part and output part
A double eccentric sleeve with a displacement of 180° is installed on the input shaft, two ball bearings are installed on the eccentric sleeve to form an H mechanism. The center hole of the two cycloids is the rolling-way of the arm bearing on the eccentric sleeve, The wheel meshes with a set of circularly arranged needle gears on the needle gear to form a gear meshing reduction mechanism with a small tooth difference (to reduce friction, in a reducer with a small speed ratio, a needle gear sleeve is provided on the needle teeth).
When the input shaft rotates with the eccentric sleeve for one cycle, due to the characteristics of the cycloidal wheel Hassan tooth profile curve and the limitation of the needle teeth on the needle gear, the movement of the cycloidal wheel becomes a plane movemnet with both revolution and rotation. When the shaft rotates forward for one cycle, the eccentric sleeve also rotates one cycle, and the cycloid rotates in the opposite direction by a large tooth difference to obtain reducing speed. With the help of the W output mechanism, the low-speed rotation of the cycloid is transmitted to the output through the pin and then pass to output shaft to obtain a lower output speed.
The features of the special reducer for white cement based wall putty mixing mixer machine
High speed ratio and high efficiency, Single-stage transmission can reach a reduction ratio of 1:87, the efficiency is above 90%. If multi-stage transmission is used, the reduction ratio is bigger.
Compact structure and small size, Due to the planetary transmission principle, the input shaft and the output shaft are on the same axis, so the structure is compact and small.
Smooth operation and low noise, Cycloid needle teeth have a large number of meshing teeth, large overlap coefficient and stable mechanism make vibration and noise to the smallest level.
Reliable use and long life. Because the main parts are made of bearing steel and have a long service life, the mechanical properties are good, and rolling friction is used, so it is durable and has a long service life.
Strong overload capacity, impact resistance and small moment of inertia. It is suitable for occasions with frequent starting, forward and reverse rotation.
Because these features fully meet the power requirements and working features of the putty powder mixer, the planetary cycloid reducer is the first choice for the special reducer of the putty powder mixer. Friendly reminding: Henan Ant Construction's putty powder mixers all use planetary cycloid reducer to ensure our customer use the most stable wall putty powder mixer machine.
