Attentions for packaging machine of wall putty or tile adhesive
What matters should be attention for tile adhesive and putty powder packaging machine
With the improvement of equipment automation, human labor is gradually replaced by machines. Tile adhesive putty powder mixer machinery manufacturers are also constantly improving the automation and technology. The ordinary tile adhesive and putty powder mixer is also gradually equipped with automatic filling package machine. The packaging machine has fast packaging speed and high accuracy which greatly improves the output of putty powder, it saves a lot of manpower, material resource and the labor cost. Today, it has saved a lot of capital for putty powder manufacturers. What matters should be attention for tile adhesive and putty powder packaging machine in the production of dry powder putty and tile adhesive?

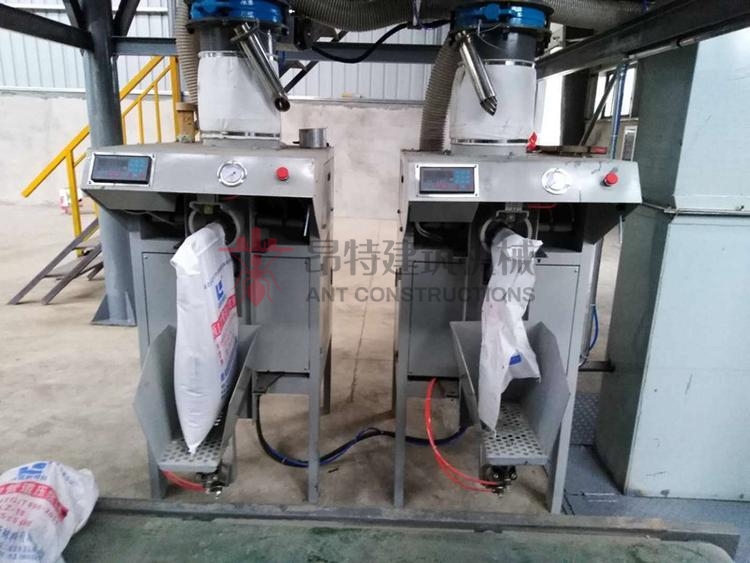

The tile adhesive and wall putty powder packaging machine produced by ANT CONSTRUCTION adopts the valve port packaging which is suitable for valve bag, currently valve bag is the most comman for dry powder packaging because of it's easy operation. The following points need to be attention when using the tile adhesive putty powder packaging equipment.
1. The hoppers, pipes and valves of the tile adhesive and putty powder packaging machine
must be cleaned in time if the packaging machine need stop for long or before the material is replaced. If the putty powder is not cleaned in time after the packaging is completed, it is very easy cause the pneumatic actuator components to be stuck by the tile adhesive or putty powder or even jamed. When start the next packaging, the packaging machine cannot work or react very insensitively, this can not guarantee the packaging measurement accuracy.
2. The appearance of the tile adhesive and putty powder packaging machine
must be kept clean and tidy. During the use of the putty powder packaging machine, due to the splash and dust deposition of the tile adhesive or putty powder, if it is not wiped and cleaned in time, it will make surface of the packaging machine become dirty. The deposited putty powder or tile adhesive may cause the metering components (pistons, electronic scales, sensors, etc.) to jam or malfunction and result in bad packaging accuracy.
3. the compressed air pressure regulating valve, lubrication oil-packaging machine of wall putty or tile adhesive
For the compressed air pressure regulating valve, lubrication oil should be added regularly. The lack of oil in the compressed air pressure regulating valve will cause the driving cylinder unsmooth moving, and this will affect the execution of controller commands, this will cause errors in metering accuracy and even execute cylinder malfunctions.
4. Piston packaging machines and weight packaging machines,
stable compressed air supply pressure is very important for packaging measurement accuracy. For the compressed air pressure supply of tile adhesive and putty powder packaging machine, relatively low pressure fluctuations must be guaranteed to be less than 0.03MPa, then it can ensures the sensitivity and consistency of pneumatic actuator components to ensure packaging accuracy. For long-distance compressed air transmission pipelines, hard pipe solutions must be adopted to ensure low compressed air pressure loss. If a long-distance soft hose connection is used, the air supply pressure cannot be guaranteed at the time when the air consumption is large, this will cause a large fluctuation in the air source pressure and affects the action of the pneumatic actuator, and the packaging accuracy of the packaging machine cannot be guaranteed.
5. the weight type tile adhesive and putty powder packaging machine,
because it uses 220V AC power supply, in order to ensure the normal operation of electronic equipment, the stability of the power supply voltage and the low interference noise of the power supply line must be guaranteed. It is strictly forbidden to use 380V AC as the power supply, otherwise it will cause burnout of the controller and other electronic components. In thunder and lightning weather, you should also pay attention to lightning protection. If lightning protection equipment is not installed, it is not allowed to operate in thunder and lightning weather.
6. the electronic measurement equipment of the weighing packaging machine,
it must be calibrated regularly according to the calibration steps to ensure the measurement accuracy. Due to temperature changes and sensor drift during use of the electronic scale, a certain error will occur in the weighing accuracy after a period of time, regular electronic scale calibration is very necessary.
7. When the packaging machine is not working properly,
it must be reparied in time. Forcibly using the packaging equipment that is not working properly will cause damage to other normal equipment.. Some consumable parts such as sealing rings should be replaced in time to ensure the performance and accuracy of the packaging equipment.
8. Working environment-packaging machine of wall putty or tile adhesive
Since the putty powder packaging machine is used in flammable and explosive places, the explosion-proof of the tile adhesive and putty powder packaging machine has become the top priority in the production. The tile adhesive and putty powder packaging machine should be reliably grounded to ensure no sparks when working. Once the explosion-proof control box is found to be damaged, the packaging operation should be stopped immediately, the power supply should be disconnected and repaired in time.
The correct operation of the tile adhesive and putty powder packaging machine can effectively increase the output of the equipment, but if it is used improperly, it may cause considerable losses. Henan Ant Construction recommend users must pay attention to the above matters when using the putty powder packaging machine to prevent misoperation.
