Application of Roots Blower in dry mix mortar production line

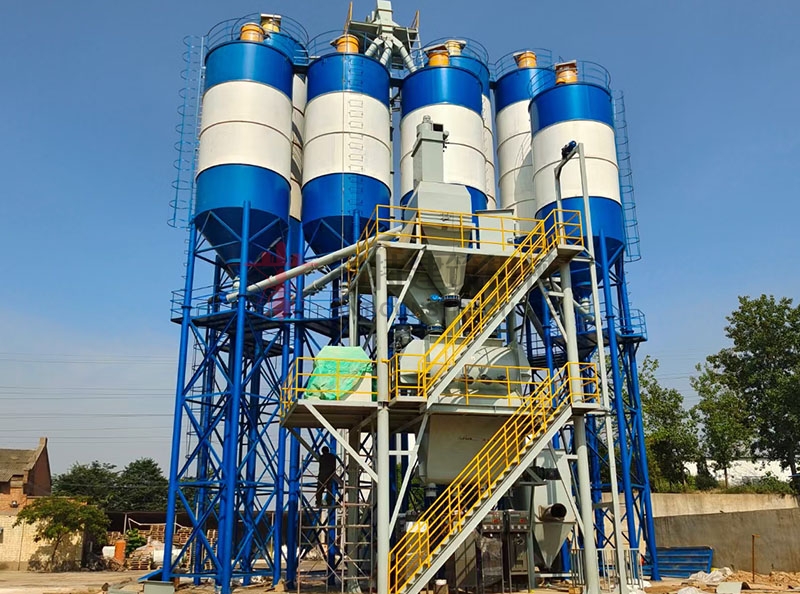

The dry mortar and wall putty powder production line is generally equipped with raw mateirals storage silo, the main raw materials of putty powder and dry mortar products are powder materials. So, normally the raw materials are lifted into the raw material silo by bucket elevator. In actual application, there is more environmentally friendly and energy-saving equipment of roots blower can also be used as raw material conveying device. Below we introduce the application of Roots blower in putty powder and dry mortar production line.
To use Roots blower in a complete set of putty powder and dry mortar production line equipment, it is necessary to understand the working principle and characteristics of the Roots blower
1. Working principle of Roots Blower in Wall Putty Powder and dry mortar production line
Roots blower is a volumetric displacement fan, the air volume and the RPM are Positive correlation. The three-blade impeller type is sucked and exhausted three times by two impellers every time it rotates. Compared with the two-blade type, the air pulsation is reduced and the load changes are small, high mechanical strength, low noise and vibration. There are two three-lobe impellers on two parallel shafts. There is always small gap among the wheel, the inner hole surface of the oval case and the impellers. Because the impellers rotate in opposite directions at a uniform speed, the air which surrounded by the impeller and the blower case body is transported from the suction side to the discharge side. The branch impellers are always keep in the correct phase by the synchronous gears and will not touch each other. Therefore, it is high-speed, do not need internal lubrication, simple in structure, stable in operation, stable in performance, suitable for a variety of purposes, and have been used in a wide range of applications.
2. Features of Roots blower:
Due to the application of three-blade rotator and spiral blower case body, the noise and vibration of the blower are very small.
High speed, high efficiency, and compact structure.
The impeller and shaft are integral structure, the impeller is not worn, the performance of the fan is lasting, and it can run continuously for a long time.
The structure is simple, due to the use of special bearings, it has superior durability, has a longer service life than domestic fans, and it is convenient for maintenance and management.
The gear oil slinger is attached, no oil leakage occurs.
Knowing well about the working principle and characteristics of Roots blower makes us easier to use it in a complete set of putty powder equipment. Of course, it can also be used in dry mortar equipment and inorganic thermal insulation mortar equipment.
