Oil-water separator application in wall care putty production
Author：ANT CONSTRUCTIONS Comefrom： Createdate：2020/10/11 16:34:57 Hits：21
Oil-water separator application in wall care putty powder production
In the wall care putty powder productine line full set equipment machine produced by Henan Ant Constructions, the electrical system is necessary in fully automatic operation wall care putty powder productine line. The complete system is composed of many components. One of the important components is the oil-water separator. It plays a vital role in the automatic operated wall care putty powder productine line full set equipment machine.
Which part use Oil-water separator in wall care putty powder production

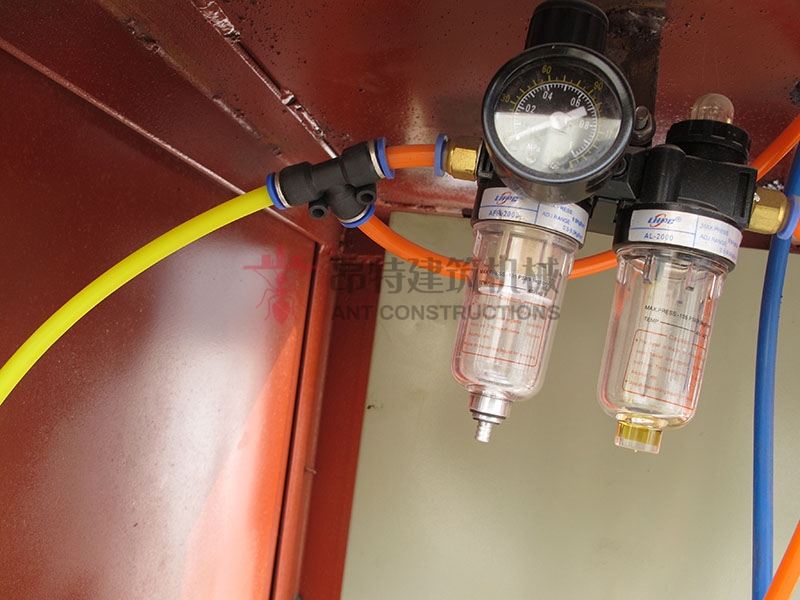

The oil-water separator in the wall care putty powder productine line full set equipment machine is mainly used in the pulse dust collector, which plays a major role in the operation of the pulse dust collector. First of all, let's understand the working principle of the oil-water separator:
Working principle of Oil-water separator in wall care putty powder production
The work of the oil-water separator is inseparable from air. Air is mainly produced by an air compressor. When compressed air enters the oil-water separator, the flow direction and speed change sharply, and then separate the oil and water with a higher density than compressed air by the influence of inertial mechanics. The mostly used are impact oil-water separator and annular rotary oil-water separator. After the compressed air enters the housing of the oil-water separator from the inlet, the airflow is first blocked by the baffle and folds back downwards, and then rises upwards to produce a circular rotation. In this way, water and oil are separated from the air under the action of centrifugal force and inertial force and settle at the bottom of the shell. The oil droplets can be discharged by regularly opening the bottom valve, and the preliminary purified air is sent to the air storage tank through the outlet. When air such as compressed air containing oil and water pass into the oil-water separator, large droplets fall to the bottom of the oil-water separator under the action of gravity, and the misty small droplets are captured by the screen and condense into large droplets and fall to the bottom of the oil-water separator. The entrained liquid is thus separated. The separated liquid flows into the lower part and is discharged by manually opening the valve or installing an air drain valve in the lower part to discharge from the body, and the dry and clean air is discharged from the outlet of the oil-water separator.
The oily wastewater generated by the air compressor during the operation of the pulse dust collector is separated in two stages through the oil-water separator to ensure the normal operation of the wall care putty powder productine line full set equipment machine. Oil-water separator is Small parts but plays big role, any small part in the putty powder complete equipment will play a vital role. For more questions about the putty powder complete equipment accessories, please visit Henan Ant Constructions website or consult our professional engineer.
