Pallet flim automatic wrapping machine
Author:ANT CONSTRUCTIONS Comefrom: Createdate:2020/12/17 17:33:48 Hits:53

Pallet flim automatic wrapping machine

General introductions-Pallet flim automatic wrapping machine

The automaitc pallet wrapping machine is suitable for container transportation of bulk cargo and packaging of  pallets. automaitc pallet wrapping machines are widely used in glass products, hardware tools, electronic appliances, papermaking, ceramics, chemicals, food, beverages, building materials and other industries. It can improve the logistics efficiency and reduce the loss during transportation.

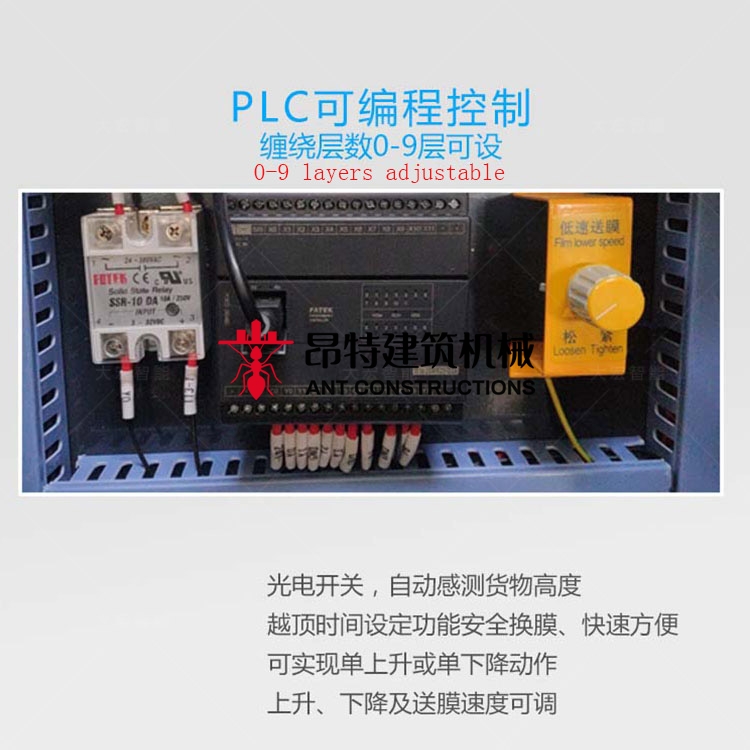

It is controlled by PLC, the wrapping layers and the number of wrapping times is adjustable, the height of the goods is automatically sensed, the wrapping is reinforced, and the turntable is automatically reset. It has the advantages of dustproof, moisture-proof and reduced packaging costs, which is an improvement ideal choice for product packaging grade.



Wrapping procedure-Pallet flim automatic wrapping machine

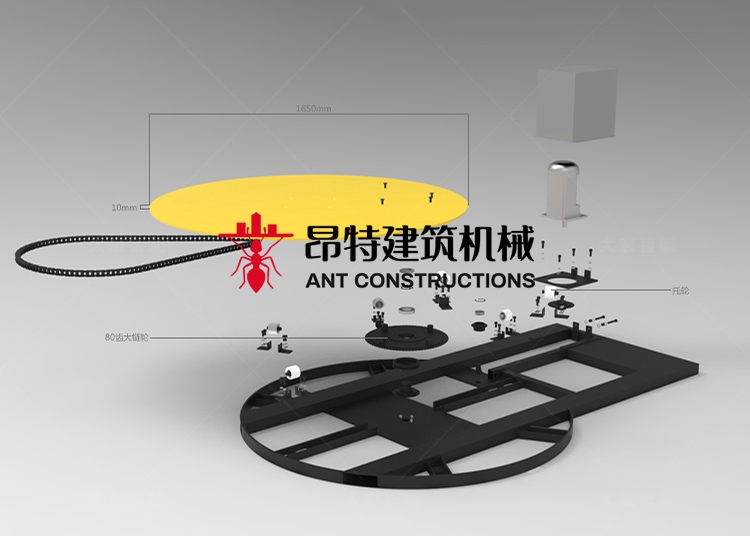

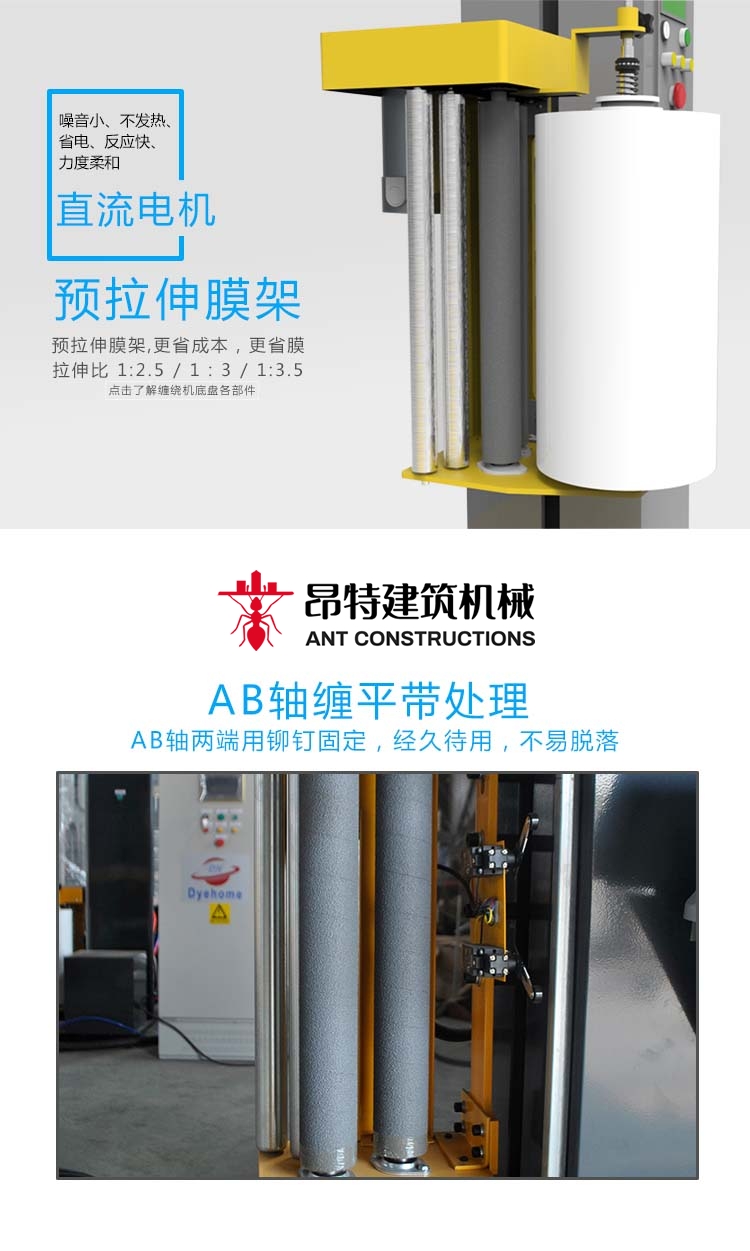

The film frame of the automaitc pallet wrapping machine is a dynamic pre-stretching mechanism, the pre-stretching can reach 250%, which reduces the film consumption, and the film feeding speed is adjustable. A separate DC motor controls the rising and falling speed of the film frame. The speed of the turntable can be individually adjusted: 0 -12rpm speed frequency adjustable, turntable slowly starts and stops. Turntable size: Diameter: 1500mm, 1650mm, 2000mm.

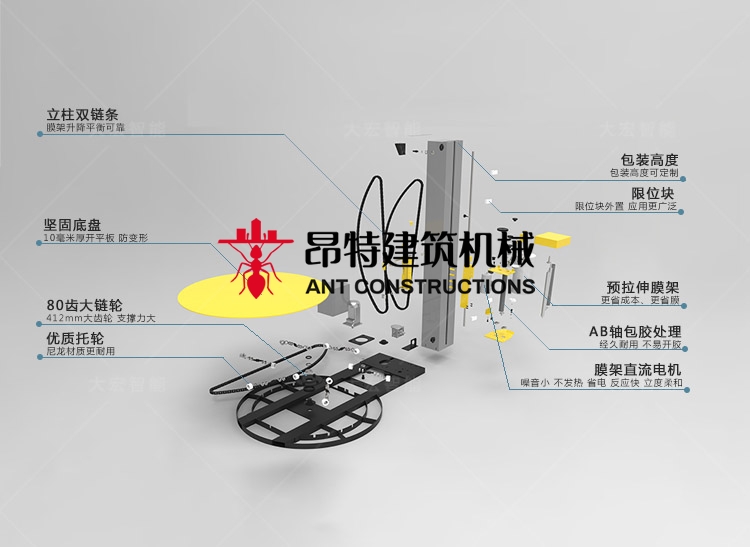

Multi function system-Pallet flim automatic wrapping machine

Film rack system: pre-stretched film rack, pre-stretching up to 250%, automatic film feeding, DC speed control system: PLC control,
