Differences of horizontal and vertical spriral wall putty mixer
Author:ANT CONSTRUCTIONS Comefrom: Createdate:2020/11/9 11:01:26 Hits:41

Differences of horizontal and vertical spriral wall putty mixer


Special wall putty powder mixers are usually divided into two types: vertical wall putty powder mixers and horizontal putty powder mixers according to different structures and working principles.

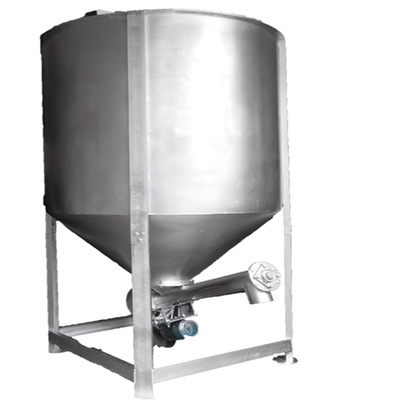

Vertical wall putty powder mixers

  • Vertical putty powder mixer adopts the form of a vertical mixing tank with screws inserted in the middle, bearings at the upper and lower ends of the tank, and the upper end is connected with a stirring motor. The principle of mixing is to use the rapid rotation of the screw to lift the raw materials from the bottom of the tank to the top, and then fly them in an umbrella shape and return to the bottom, so that the raw materials are stirred up and down in the mixing tank to achieve a uniform mixing effect.

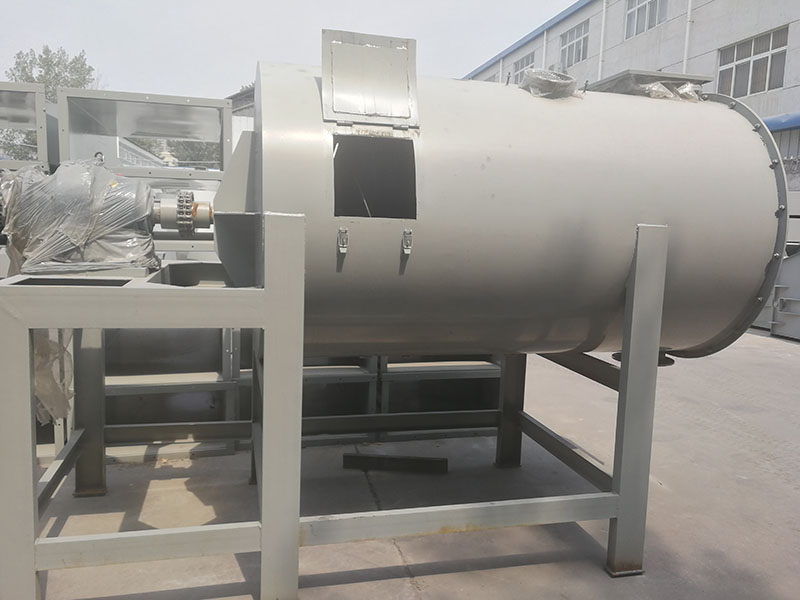

Horizontal putty powder mixer

  • Horizontal putty powder mixer adopts the form of a horizontal mixing tank with 2-3 layers of spiral ribbons interspersed in the middle. Bearings are at both ends of the cylinder. The mixing motor is connected through a reducer and is equipped with a feeding hoist. The mixing principle is  under the movement of the spiral ribbons on the mixing shaft, the inner and outer spiral ribbons turn the material in a larger range. The inner spiral belt moves the material to both sides, and the outer spiral belt moves the material inward from both sides to make the material back and forth blending, the other part of the material is pushed by the spiral belt to move along the axial and radial direction, thus forming a form of convection circulating through the multi-layer spiral ribbons to mix the whole movement, and achieve the effect of uniform mixing in a short time.


The difference between horizontal and vertical spriral wall putty mixer in dry mixing

  • vertical wall putty putty powder mixer:

  1. Low cost, suitable for individual users, small-scale investment;

  2. Small footprint, suitable for users who build factories on small sites;

  3. The mixing speed is slightly slow, the local material moves, the mixing speed is slow, and the output is relatively low;

  4. The mixing uniformity is low, and some materials are mixed by throwing on the material, and the mixing uniformity of materials with different specific gravity is not high;

  5. The maintenance rate is high. The bearings are at the upper and lower ends, and the powdery materials are easy to enter the bearings, which will cause the bearings to die and break.

  • Horizontal putty powder mixer:

  1. The cost is slightly higher, suitable for small and medium-sized investment, the price of the same model horizontal putty powder mixer is 2-3 times the price of the vertical putty powder mixer;

  2. The mixing speed is fast, the multi-layer spiral ribbon mixing method is adopted, and the animal material is moved as a whole, the mixing speed is fast, the output is high, and the average mixing time is 5-10 minutes;

  3. The mixing uniformity is high, the material is driven by the multi-layer spiral belt to do interpenetrating movement, the mixing has no dead ends, high uniformity, and good quality;

  4. he maintenance rate is low. The bearings are at both ends of the mixer and do not touch the material. Equipped with a reducer, the maintenance rate is low.


As a manufacturer specializing in the production of wall putty powder mixing machine, Henan Ant Construction engineer strongly recommend customers to use horizontal putty powder mixers. Both the end product quality and the mixing uniformity are better than the vertical ones, especially in end product quality and output capacity, there is a big difference between a vertical machine and a horizontal machine. If want higher output and better mixing uniformiity, the horizontal putty powder mixer is your first choice.
