Characteristic and mix uniformity of dry sand cement mortar mixer
Author：ANT CONSTRUCTIONS Comefrom： Createdate：2020/10/20 17:00:54 Hits：29
Characteristics and mixing uniformity of dry sand cement mortar mixer
Double-shaft horizontal non gravity dry mortar mixer is a kind of dry mixing machine widely used in putty powder ready mix plant and dry mortar production line. Due to its fast mixing speed and high output, it has always occupied a leading position in the putty powder and dry mortar machinery industry.
As a mature dry powder mixing machinery equipment, the double-shaft horizontal dry sand cement mortar mixer machine has the following structural and functional characteristics:

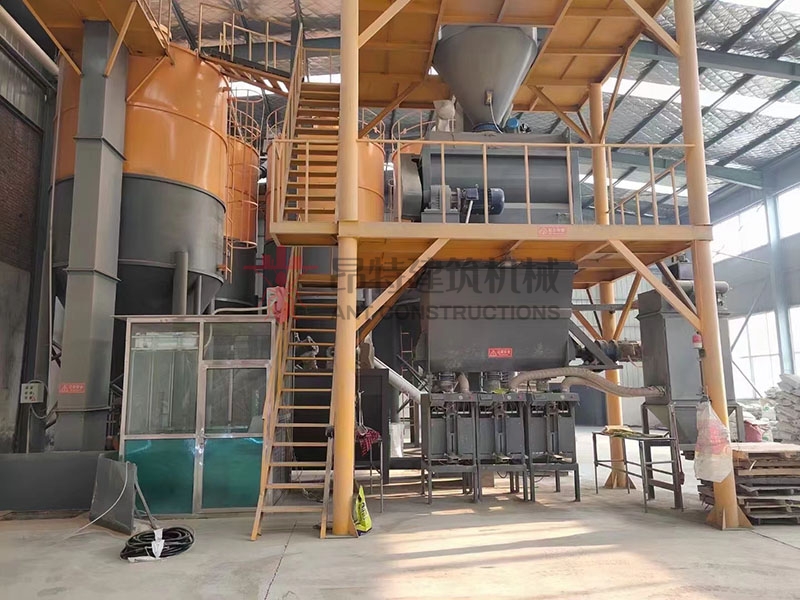

Structural and functional characteristics of dry mortar ready mix plant
The double-shaft horizontal dry sand cement mortar mixer machine is mainly composed of a casing, twin mixing shaft assembly, driving device, piping, a cover plate, a chain cover and other parts. The mixing shaft is the main component of the double-shaft horizontal dry sand cement mortar mixer machine, and its components mainly include left and right rotation mixing shafts, bearing seats, bearing sleeves, bearing caps, gears, sprockets, oil cups, blades and other parts.
The shell of the double-shaft horizontal dry sand cement mortar mixer machine is mainly composed of plates and section steel, welded and formed in the manufacturing plant, and assembled with other parts which is the support parts of the double-shaft horizontal dry sand cement mortar mixer machine. Because the shell of the double-shaft horizontal dry sand cement mortar mixer machine is tightly sealed, there will be no flying powder or powder leakage, which can effectively ensure the purity of the material and the safety of the operator. The screw shaft assembly is the main component of the double-shaft horizontal dry sand cement mortar mixer machine. Its components mainly include left and right screw shafts, bearing seats, bearing sleeves, bearing caps, gears, sprocket wheels, oil cups, blades and other parts.
The left and right spiral shaft of the double-shaft horizontal dry sand cement mortar mixer machine requires high manufacturing accuracy and good process performance. It has strict requirements for matching with the bearing seat, bearing sleeve and bearing cover. The oil cup of the double-shaft horizontal dry sand cement mortar mixer machine is a pressure-fitted pressure oil cup, which is convenient and effective for filling lubricating oil. The cover of the double-shaft horizontal mixer mainly includes the left cover, the middle cover, the right cover, the hole cover, and the manhole cover. There are six inspection holes on both sides of the double-shaft horizontal mixer to facilitate the operator's usual inspection and maintenance. Double-shaft horizontal dry sand cement mortar mixer machine is used at the end of pneumatic conveying.
The mixing uniformity of the double-shaft horizontal dry sand cement mortar mixer machine
The mixing process of the double-shaft horizontal dry sand cement mortar mixer machine not only occurs in the radial direction, but also in the axial direction. The main mixing zone is located in the circumferential area of the mixing body. The energy along this direction is large during the whole mixing process,. Therefore, the mixing space can be fully utilized, so that it can finish good mixing result when circumferential speed of aggregate, cement and water at low speed (1.4～1.6 In the case of m/s).
Ant Construction is a professional manufacturer specializing in the production of double-shaft horizontal dry mortar wall putty mixers. Professional technical engineers provide advice and provide professional solutions for customers who are interested in investing in dry mortar, putty powder, and stone texture paint , thermoplastic road paint, etc. Welcome to visit ourcompany.
