Lime based powder putty 5 t/h mixer machine
General Introductions-Lime based powder putty 5 t/h mixer machine
Wall plaster lime based powder putty mixer machine is widely used in mixing building materials, such as render plastering mortar, gypsum plasters,mineral facing plasters,thermal insulation renders,tile adhesive, grout , gap fillers, skim coat, repair mortars,floor screed,masonry mortar, wall putty powder ,ect.
It is a new green building material mix equipment and becomes more and more popular in domestic market and international market.
With the rotation of main shaft, multi-ribbon start to rotate and inside blades make material moves outwards, while outside blades make material moves inwards.
Continous movement mixed material uniformly. Besides, some material flows by radial movement along with the shaft direction to make material cycle of convection. Material will be mixed evenly in short time for the above principles.
Parameters-Lime based powder putty 5 t/h mixer machine
Model | Power（kw） | Rotating speed(r/min) | Drum dia*length（mm） | Size（mm） | Drum volume |
HK-300L | 2.2 | 63 | 680*1250 | 2100*700*1450 | 450L |
HK-500L | 5.5 | 52 | 800*1670 | 2800*810*1780 | 850L |
HK-1000L | 7.5 | 50 | 1050*1880 | 3200*1070*2000 | 1800L |
HK-1500L | 11 | 33 | 1150*2100 | 3600*1200*2600 | 2200L |
HK-2000L | 11 | 33 | 1200*2500 | 4000*1250*2600 | 2800L |
Features-Lime based powder putty 5 t/h mixer machine

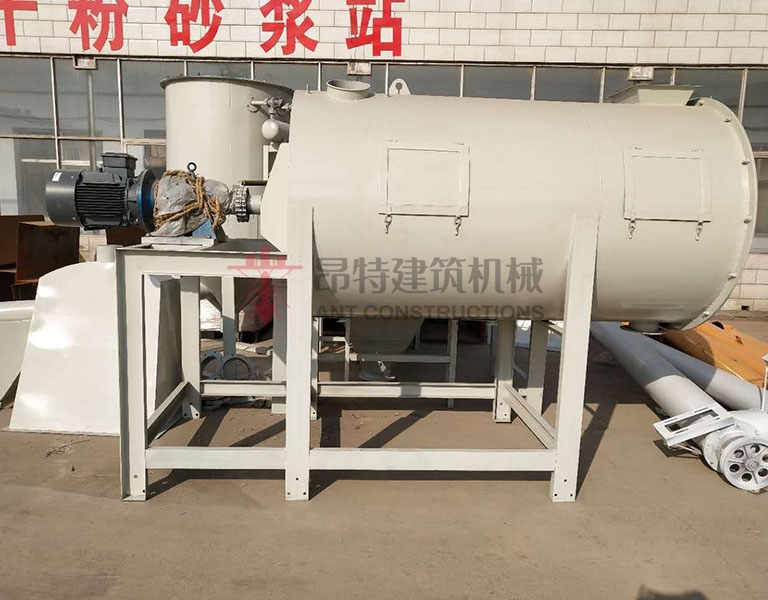

It is of horizontal structure,stable working status,low noise, long service life and easy to

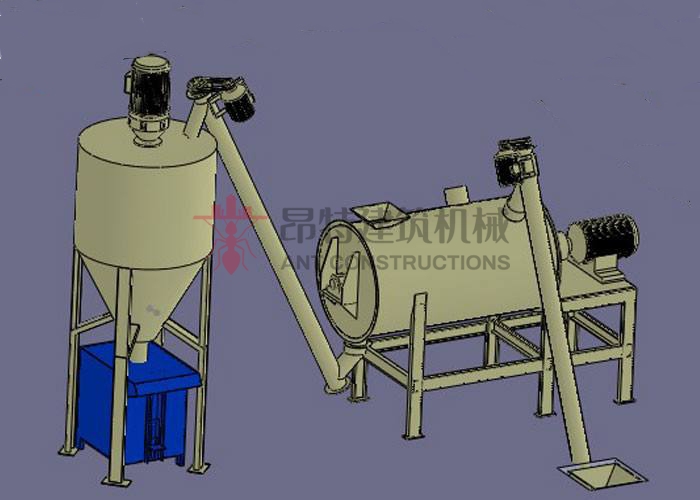

be installed. Three layers of sprial ribbons mix material evenly and quickly.Screw elevator makes material easy to feed the mixer. Special designed cleaning window for cleaning inside.
1. Small investment and best for individuals.
2. Small footprint, the height less than 3m, ordinary houses can build the factories.
3. Easy to operation,2-3 people can make it.
4. High yield, 1T for every shift, the output is 10-20T everyday.
5. Easy to maintenance.

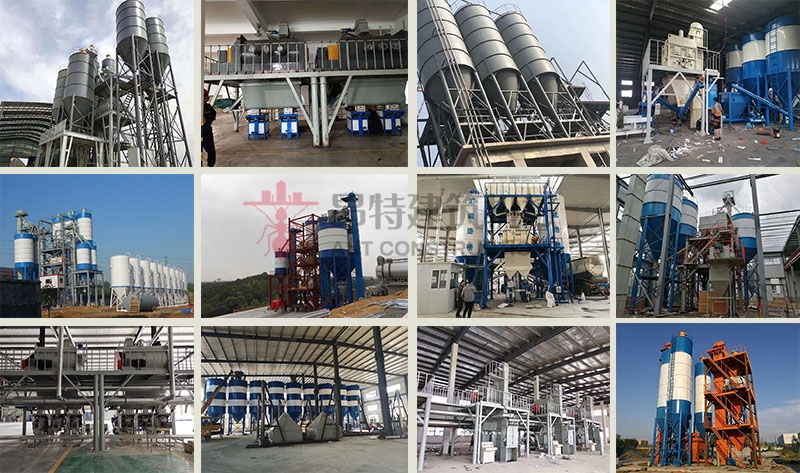

Ant Construction Machinery has designed and delivered larger dry mix plant for various bulk materials since the 1990s. The users of the dry mix plant we have supplied include the building materials, chemicals, metal processing, food and forestry industries. Long experience and in-depth understanding of the behavior and handling of dry powder materials allow optimal equipment choices and the most appropriate process implementation. This results in the most efficient investment for the customer and ensures a high quality and efficient production process. Reach us to start your successful dry mix motar production plant now...
