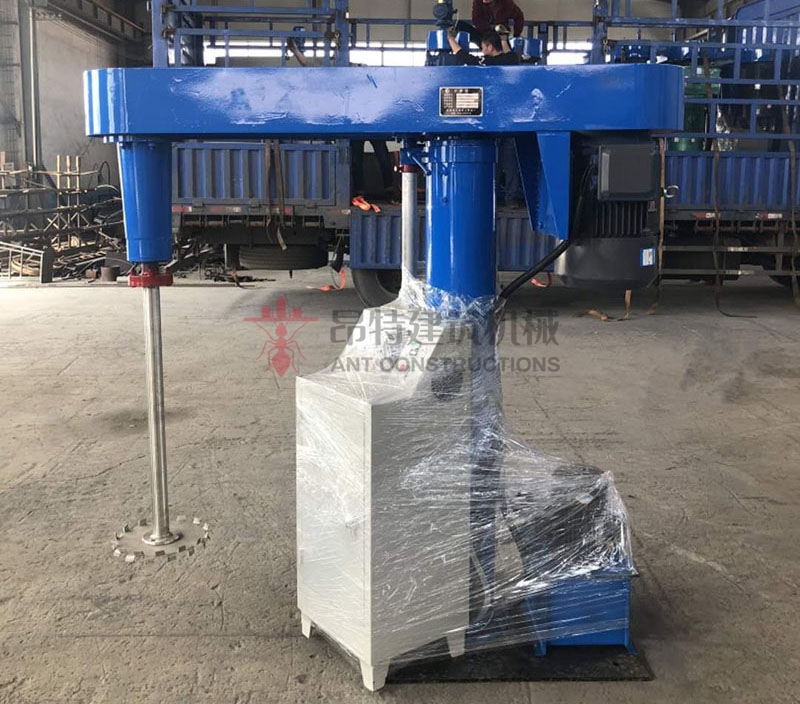

Latex emulsion pigment paint stirring mixer machine
Types of Latex emulsion high viscosity pigment paint stirring mixer dispersion machines
Elevating high-speed dispersers can be divided into single-axis dispersers and double-axis dispersers according to their applications. The high-speed dispersers usually adopts stepless speed regulation (such as for water-based coatings), and explosion-proof frequency conversion speed regulation (such as for oily coatings) and other forms. According to the way of lifting, it can be divided into mechanical lifting, hydraulic lifting, pneumatic lifting, manual lifting and so on
Main Parameters-Latex emulsion pigment paint stirring mixer machine
| Type | ANT2.2 | ANT4 | ANT5.5 | ANT7.5 | ANT11 | ANT15 | ANT18.5 | ANT22 |
| Main Motor Power (Kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 |
| Impeller Rotational Speed (rpm) | 80~1250 |
| Dispersion Plate Diameter(mm) | 150~200 | 150~200 | 200~250 | 250~300 | 300 | 350 | 350 | 350~400 |
| Stirring-axis Max Stroke (mm) | 1000 |
| Installation Height (mm) | 3100 | 3100 | 3100 | 3100 | 3100 | 3200 | 3200 | 3200 |
| Overall Dimensions (mm) | L | 1500 | 1500 | 1500 | 1500 | 1500 | 2000 | 2000 | 2000 |
| W | 550 | 550 | 550 | 550 | 550 | 700 | 700 | 700 |
| H | 2100 | 2100 | 2100 | 2100 | 2100 | 2200 | 2200 | 2200 |
| Weight (Kg) | 600 | 640 | 710 | 730 | 830 | 930 | 1050 | 1070 |
Working principle-Latex emulsion pigment paint stirring mixer machine
The zigzag circular dispersing disc of the lifting high-speed disperser rotates at high speed in the container to complete the solid-liquid dispersion, wetting, depolymerization and stabilization process.
Make the slurry flow in a rolling ring shape, producing a strong vortex, and the particles on the surface of the slurry will spiral down to the bottom of the vortex;
A turbulent area is formed at 2.5-5mm from the edge of the dispersion disc, the slurry and particles are strongly sheared and impacted;
The upper and lower beams are formed outside the area, and the slurry is fully circulated and turned;
Laminar flow is under the dispersing disc of the dispersing machine, the slurry layers of different flow rates diffuse each other to play a dispersing effect. The high-speed dispersion machine has multiple functions such as hydraulic lifting, 360-degree rotation, and stepless speed regulation. It can be equipped with 2-4 containers at the same time. The hydraulic lifting stroke is 1000 mm and the 360-degree rotation function can meet the multi-purpose of one machine. It can change from one cylinder to another in a short time for work, which improves work efficiency. It also reduces labor.
Applications-Latex emulsion pigment paint stirring mixer machine
Pre-dispersion can mix the pigment with part of the paint to become a semi-finished pigment paste. It is the process of color paste production. Purpose: 1. To make the pigments evenly mixed; 2. To make the pigments partially wet; 3. To break up large pigment aggregates initially. It is mainly mixing, which plays a part of dispersing effect and prepares for the next grinding process. The quality of the pre-dispersion effect directly affects the quality and efficiency of grinding and dispersion. The equipment used is mainly a high-speed dispersion machine.
In addition to being used as dispersion equipment, the lift-type high-speed disperser can also be used as a paint production equipment. For example, the pigments used in the production of paint are easily dispersible pigments, or the fineness of the paint is not high. In this case, the high-speed disperser can be used directly Disperse production of paint.
